WIFI_BT

开发板使用的wifi_bt模组是 AW-NB197SM new(43438)

1 WIFI&BT配置​

以x2600e_nand_5.10_defconfig为例

1.1 wpa工具配置​

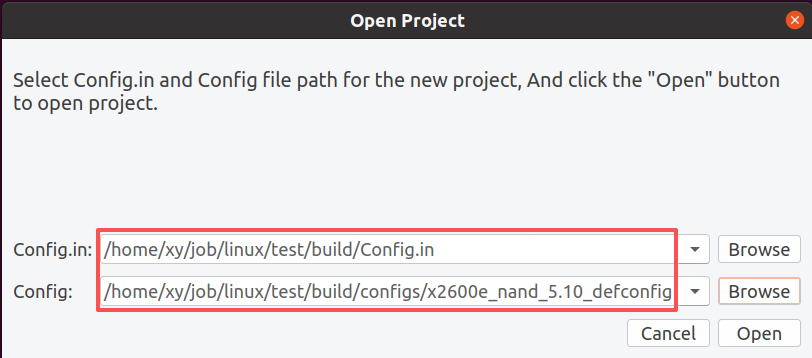

打开IConfigTool工具，选择配置文件

1

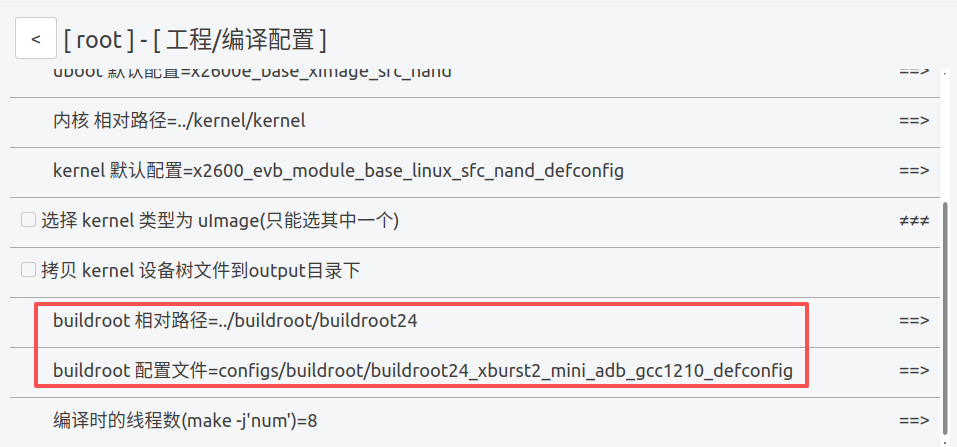

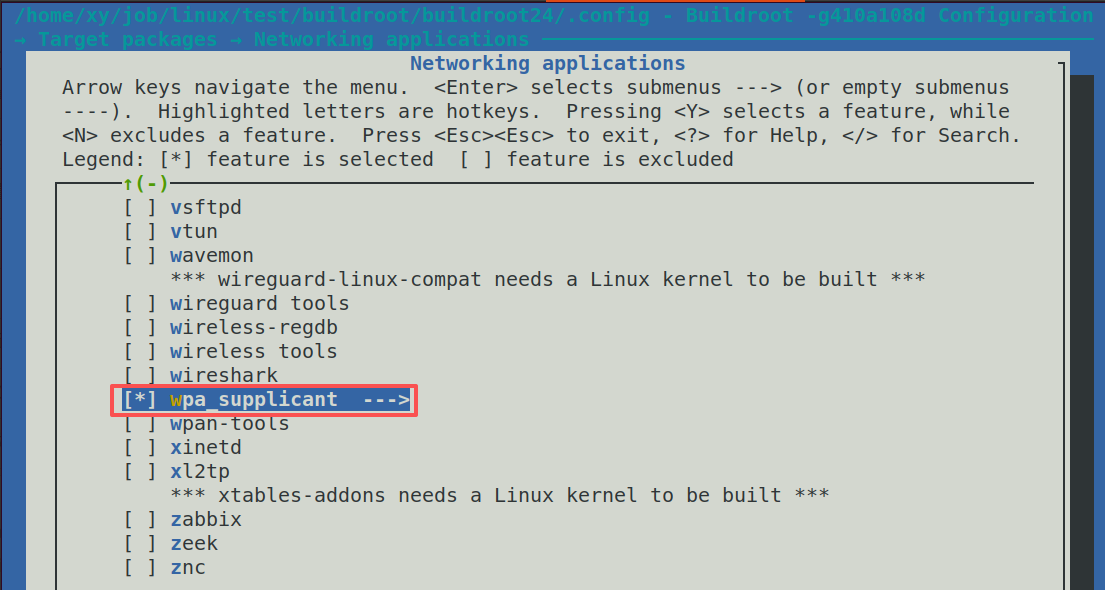

若要使⽤wpa 相关应⽤⼯具，那么需要在buildroot中配置上。首选确认当前buildroot的目录和配置文件：

2

xy@vb:~/job/linux/test/build$ cd ../buildroot/buildroot24/   //进入buildroot目录
xy@vb:~/job/linux/test/buildroot/buildroot24$ make menuconfig

3

4

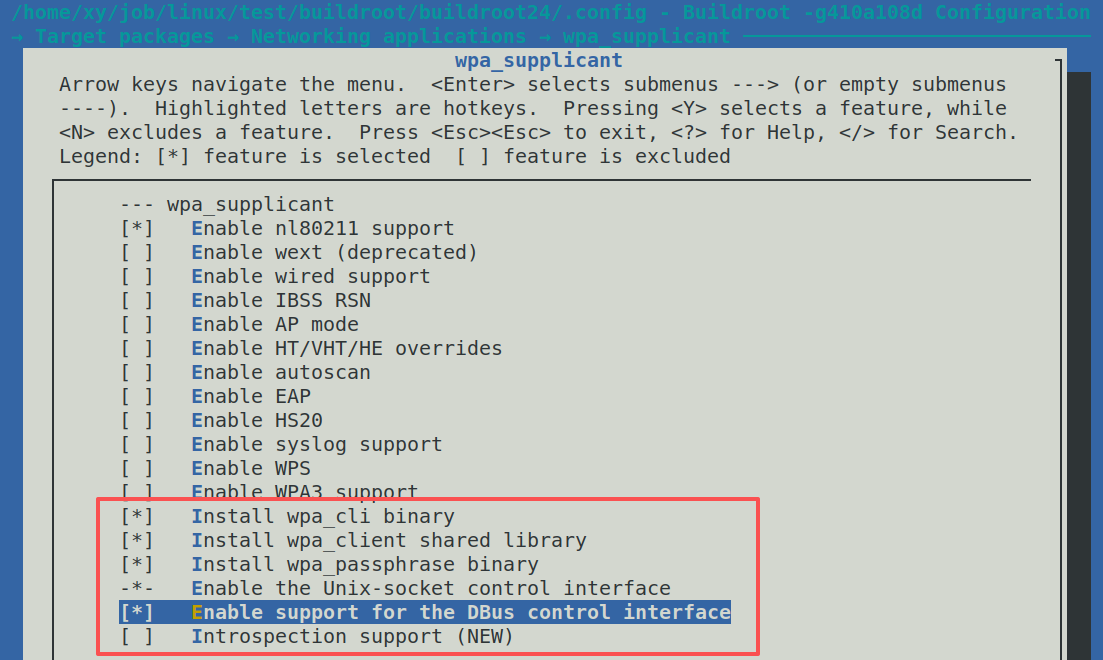

可以看到wpa 相关应⽤⼯具已经添加，需要保存配置

xy@vb:~/job/linux/test/buildroot/buildroot24$ cp .config ../../build/configs/buildroot/buildroot24_xburst2_mini_adb_gcc1210_defconfig

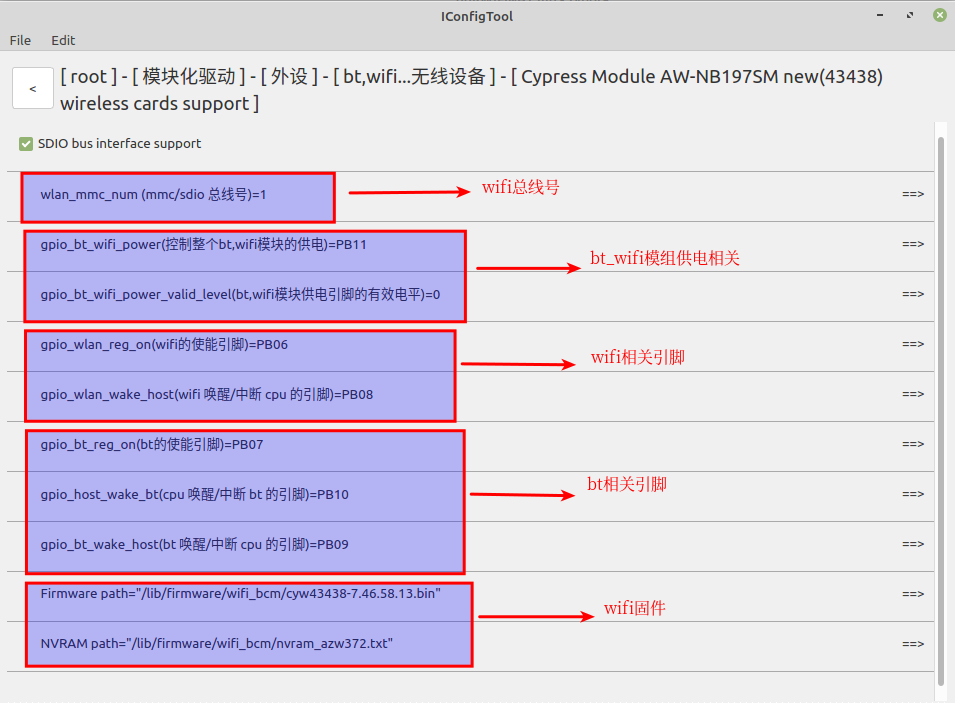

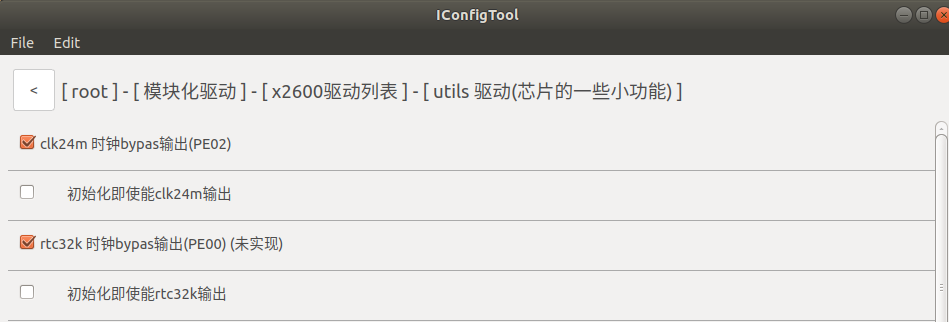

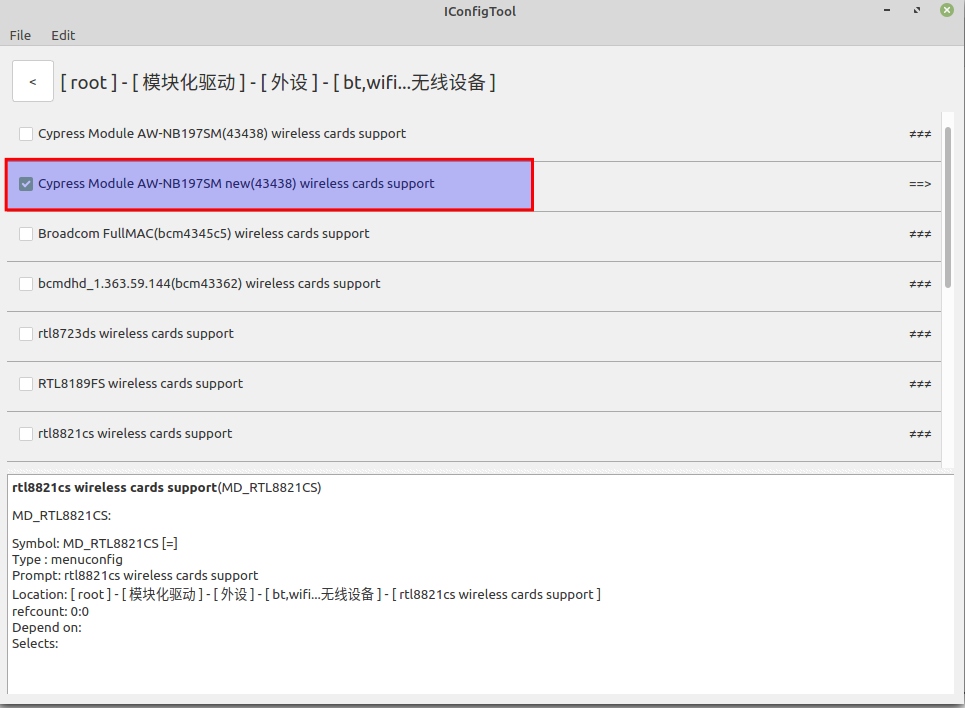

1.2 配置bt&wifi设备驱动​

5

6

7

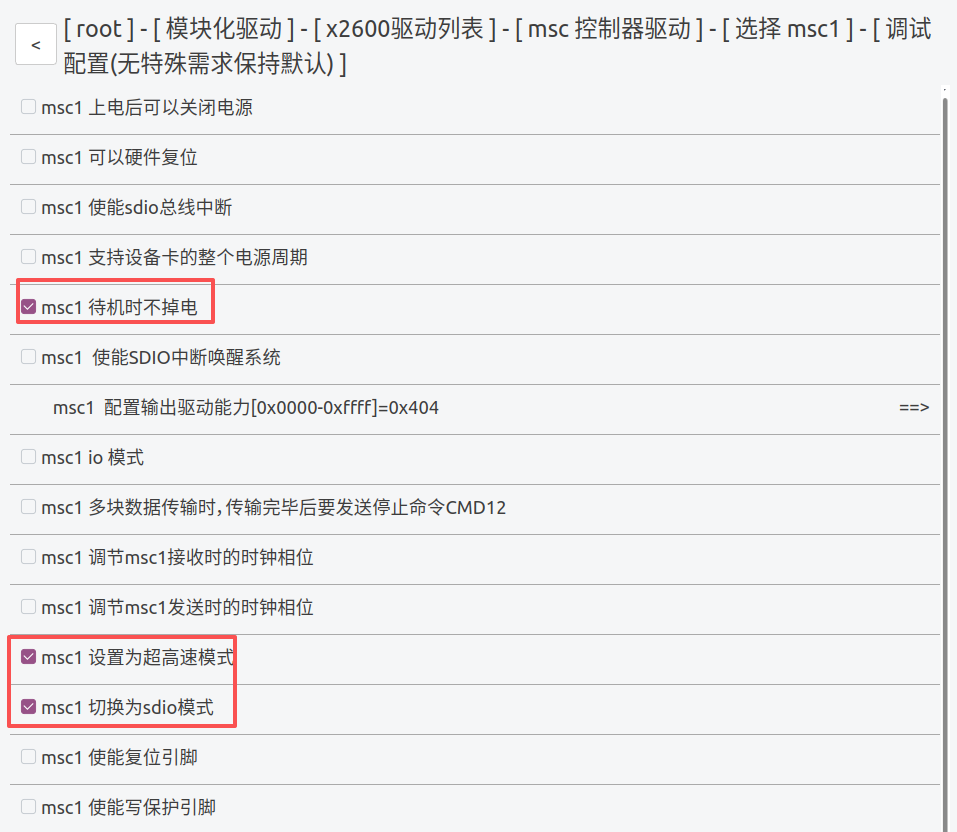

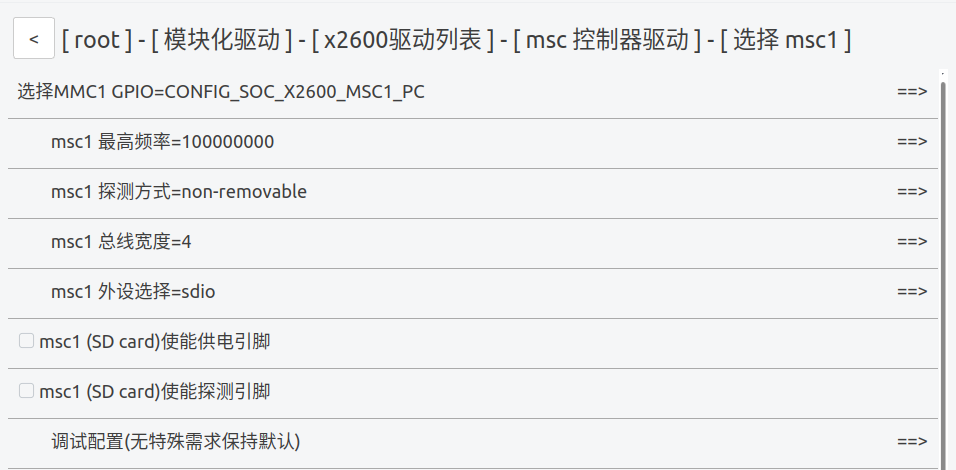

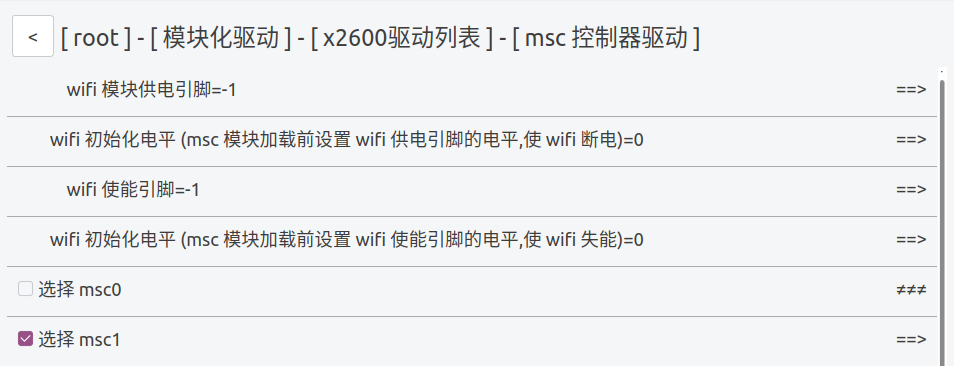

1.3 配置wifi mmc总线​

8

9

10

1.4 kernel添加蓝牙通信串口uart1​

根据硬件设计，当前蓝牙通信接口为uart1_pb03 。需要在kernel dts文件中打开uart1_pb03的驱动。首先确定当前kernel的编译目录和配置文件：

xy@vb:~/job/linux/test/build$ cat configs/x2600e_nand_5.10_defconfig |grep kernel
APP_kernel_dir=../kernel/kernel
APP_kernel_config=x2600_evb_module_base_linux_sfc_nand_defconfig

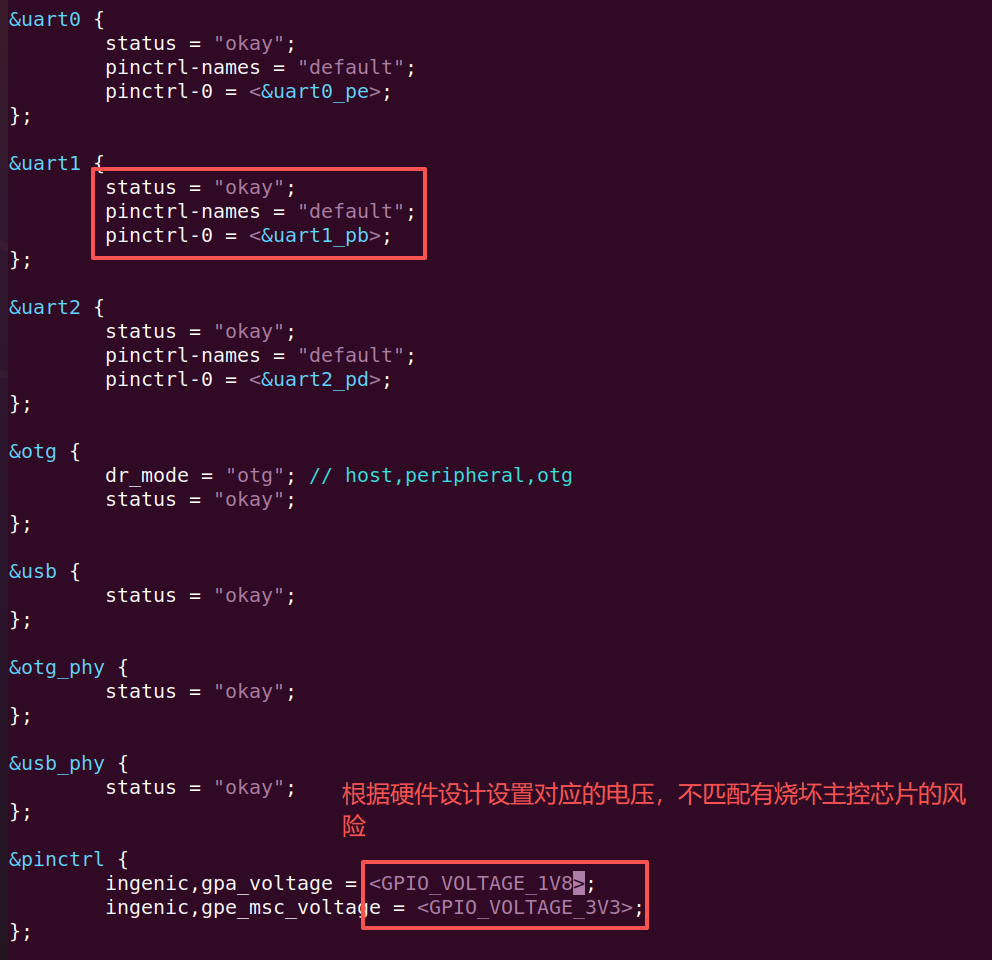

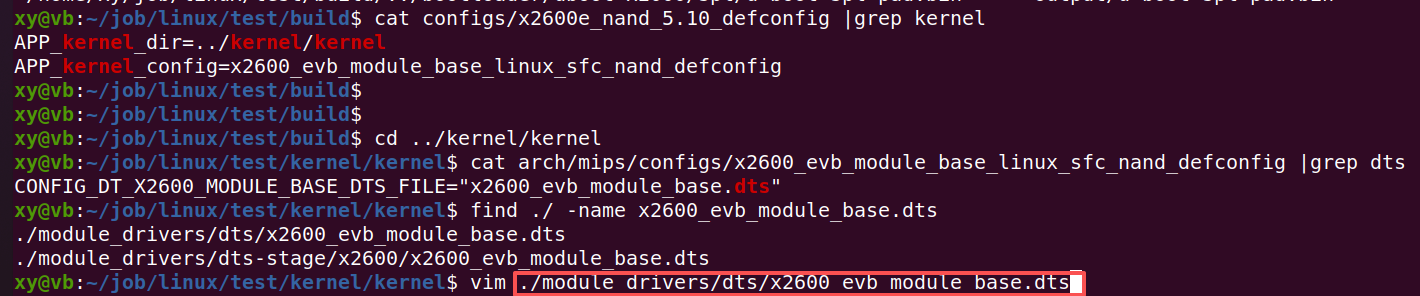

进一步确定当前使用的dts文件：

11

12

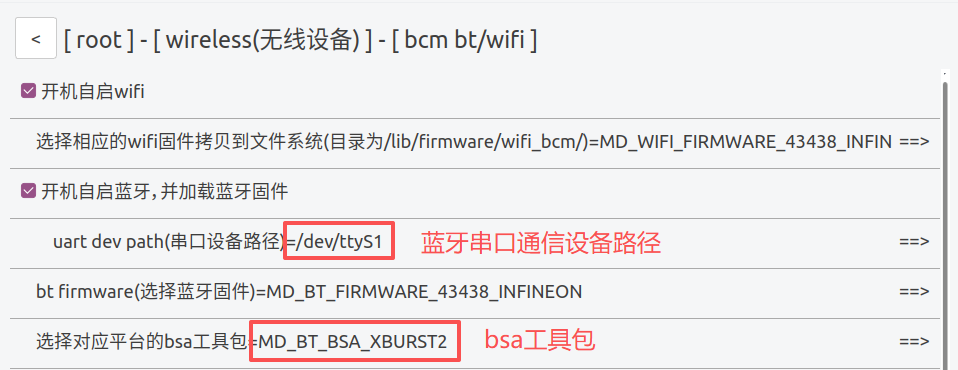

1.5 开机自启wifi,bt​

wifi，bt 固件路径存放在⼯程⽬录下的wireless/bcm/firmware/wifi_bcm/43438_infineon，wireless/bcm/firmware/bt_bcm编译时会复制到⽂件系统 的/lib/firmware/wifi_bcm，/lib/firmware/bt_bcm⽬录.

如果选择开机⾃启，系统启动时会⾃动将固件加载

13

2 编译烧录​

重新编译配置

xy@vb:~/job/linux/test/build$ make x2600e_nand_5.10_defconfig
xy@vb:~/job/linux/test/build$ make

烧录固件, 没烧录过见烧录说明

3 WIFI功能验证​

使用 WiFi 需要设置想要连接 WiFi 的名称及密码,将配置写入文件,启动 WiFi 时运行配置文件即可

# cd /usr/data/                                    //进入/usr/data/目录更改wifi配置文件

# cat wpa_supplicant.conf

ctrl_interface=/var/run/wpa_supplicant
update_config=1

network={
    ssid="Guest"                                   //需要连接的wifi名称，不要是中文名称
    scan_ssid=1
    psk="ingenic_guest"                            //需要连接的wifi密码
    priority=1
    }

配置完后重启,默认是开机自启wifi

# ifconfig -a
lo        Link encap:Local Loopback
          inet addr:127.0.0.1  Mask:255.0.0.0
          UP LOOPBACK RUNNING  MTU:65536  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

wlan0     Link encap:Ethernet  HWaddr D0:31:10:AF:8A:3F
          inet addr:10.4.229.219  Bcast:10.4.229.255  Mask:255.255.255.0
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:5 errors:0 dropped:43 overruns:0 frame:0
          TX packets:5 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:1004 (1004.0 B)  TX bytes:1274 (1.2 KiB)
#

#
# ping 10.4.229.1
PING 10.4.229.1 (10.4.229.1): 56 data bytes
64 bytes from 10.4.229.1: seq=0 ttl=255 time=13.969 ms
64 bytes from 10.4.229.1: seq=1 ttl=255 time=10.690 ms
64 bytes from 10.4.229.1: seq=2 ttl=255 time=10.417 ms
64 bytes from 10.4.229.1: seq=3 ttl=255 time=27.580 ms
64 bytes from 10.4.229.1: seq=4 ttl=255 time=10.723 ms

4 BT功能验证​

查看bt是否启动，如果没有启动，则在/run/blue_bsa/目录下没有相关文件，需要手动启动 bt_enable_bsa.sh脚本

# ls /run/blue_bsa/

ble_local_keys    bt-avk-fifo       bt-daemon-socket

执⾏商家提供的测试命令,这些命令存放在⼯程的 wireless/bcm/bin/xburst2_bsa/app/⽬录下

xy@vb:~/job/linux/test/wireless/bcm/bin/xburst2_bsa/app$ ls
app_ag  app_avk  app_dg  app_hh  app_manager  app_ops  app_tm
app_av  app_ble  app_hd  app_hs  app_opc      app_pan  simple_app

通过adb将测试命令传到⽂件系统的/run/blue_bsa⽬录下，下⾯我⽤app_manager进⾏测试，扫描我的⼿机蓝⽛设备

# ./app_manager
Bluetooth Application Manager Main menu:            //功能菜单
        1 => Abort Discovery
        2 => Discovery                              //搜索蓝牙设备
        3 => Discovery test
        4 => Bonding
        5 => Cancel Bonding
        6 => Remove device from security database
        7 => Services Discovery (all services)
        8 => Device Id Discovery
        9 => Set local Device Id
        10 => Get local Device Id
        11 => Stop Bluetooth
        12 => Restart Bluetooth
        13 => Accept Simple Pairing
        14 => Refuse Simple Pairing
        15 => Enter BLE Passkey
        16 => Act As HID Keyboard (SP passkey entry)
        17 => Read Device configuration
        18 => Read Local Out Of Band data
        19 => Enter remote Out Of Band data
        20 => Set device visibility
        21 => Set device BLE visibility
        22 => Set AFH Configuration
        23 => Set Tx Power Class2 (specific FW needed)
        24 => Set Tx Power Class1.5 (specific FW needed)
        25 => Change Dual Stack Mode (currently:DUAL_STACK_MODE_BSA)
        26 => Set Link Policy
        27 => Enter Passkey
        28 => Get Remote Device Name
        29 => RSSI Measurement
        30 => Set class of device
        96 => Kill BSA server
        97 => Connect to BSA server
        98 => Disconnect from BSA server
        99 => Quit
Select action => 2                                   //选择搜索蓝牙设备
Start Regular Discovery
New Discovered device:6
        Bdaddr:7c:e0:95:1b:05:67
        Name:iPhone                                 //搜索到蓝牙的设备名称
        ClassOfDevice:00:00:00 => Misc device
        Services:0x00000000 ()
        Rssi:-53
        DeviceType:BLE InquiryType:BLE AddressType:Random
        Extended Information:
            Flags:0x1a [LE_General Controller_LE/BR/EDR Host_LE/BR/EDR]
            TxPower:8 dB
            Manufacturer Specific CompanyId:0x004C [Apple, Inc.]:
                Data: 10 06 29 1D 7C F7 3C 08
New Discovered device:7
        Bdaddr:dc:85:de:1a:57:64
        Name:jwu                                  //搜索到蓝牙的设备名称
        ClassOfDevice:1c:01:0c => Computer
        Services:0x00000000 ()
        Rssi:-78
        VidSrc:2 Vid:0x1D6B Pid:0x0246 Version:0x0530
        DeviceType:BR/EDR InquiryType:BR AddressType:Public
        Extended Information:
            FullName: jwu
            TxPower:4 dB
            DeviceId: VendorId:0x1D6B [USB] ProductId:0x0246 Version:0x0530
            Complete Service [UUID16]:
                0x110E [A/V Remote Control]
                0x110C [A/V Remote Control Target]
                0x110A [Audio Source]
                0x110B [Audio Sink]
                0x1112 [Headset Audio Gateway]
                0x1108 [Headset]
                0x1133 [Message Notification Server]
                0x1132 [Message Access Server]
                0x112F [Phonebook Server]
                0x1104 [IrMC Sync]
                0x1106 [OBEX File Transfer]
                0x1105 [OBEX Object Push]
            Complete Service [UUID128]:
                0x010000EE020000800010000005500000
Discovery complete                                         //搜索完成
